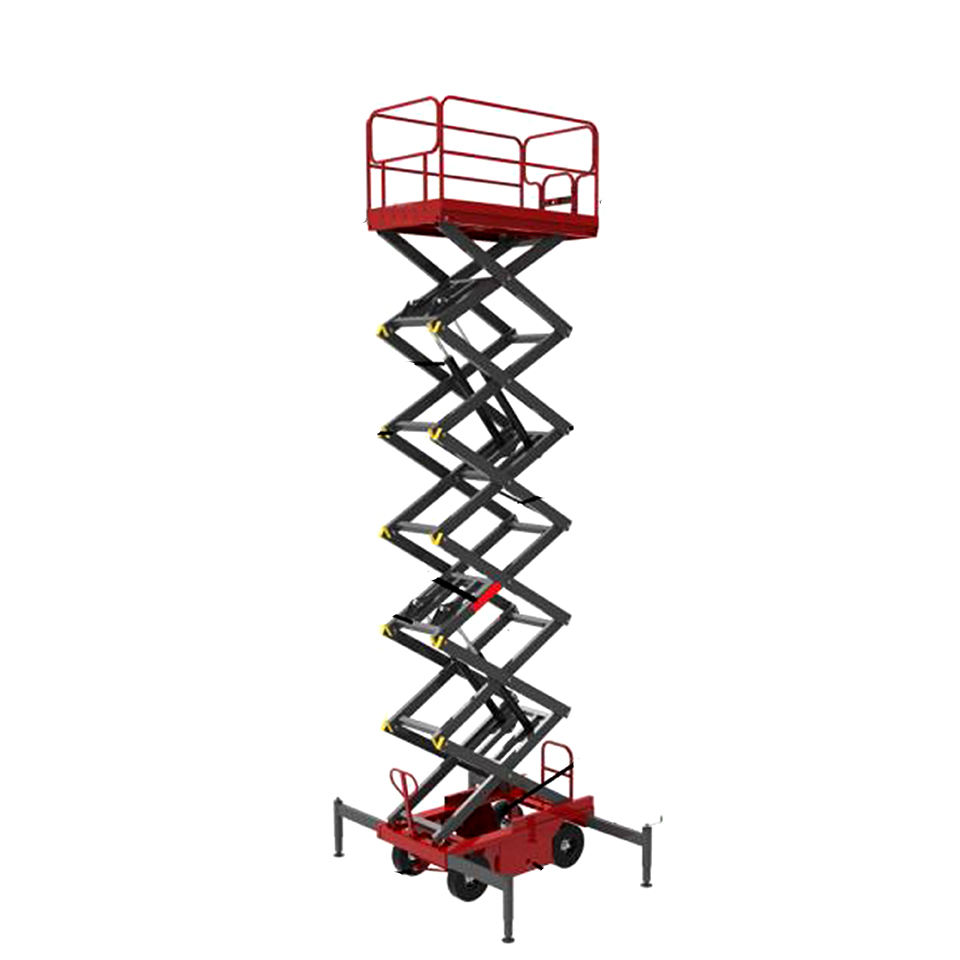

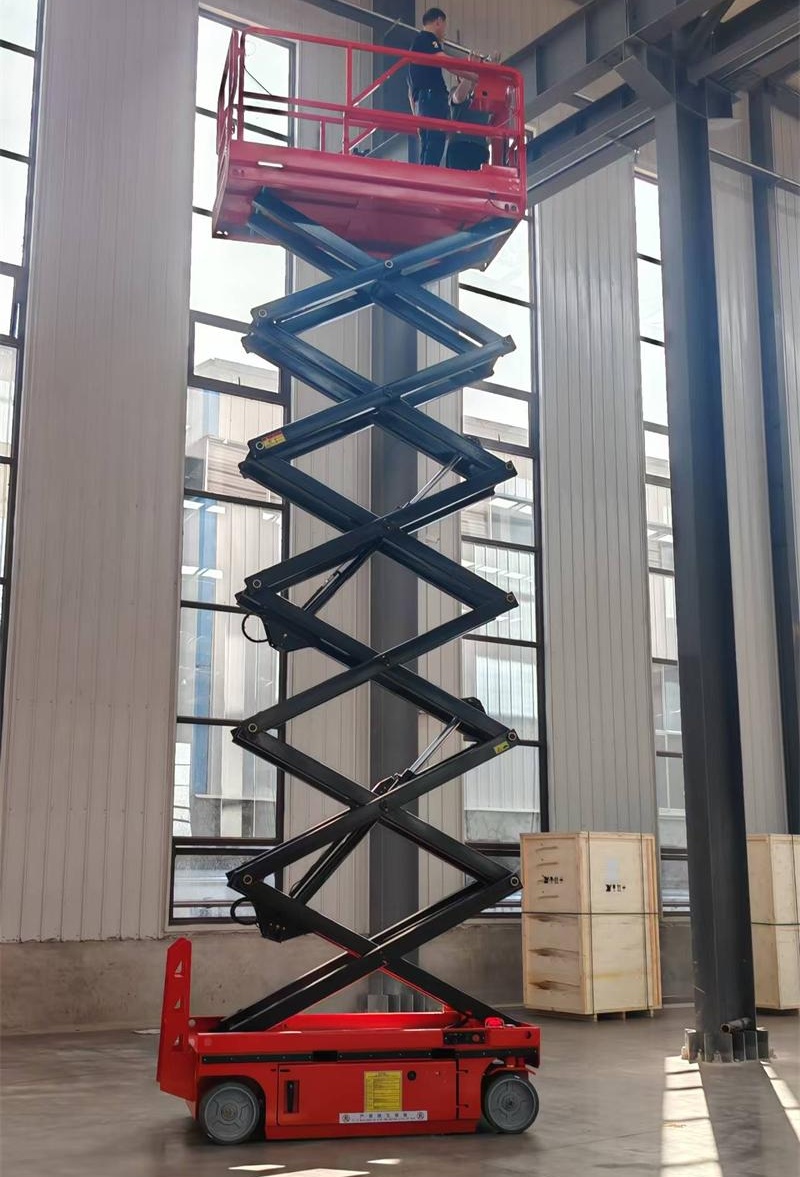

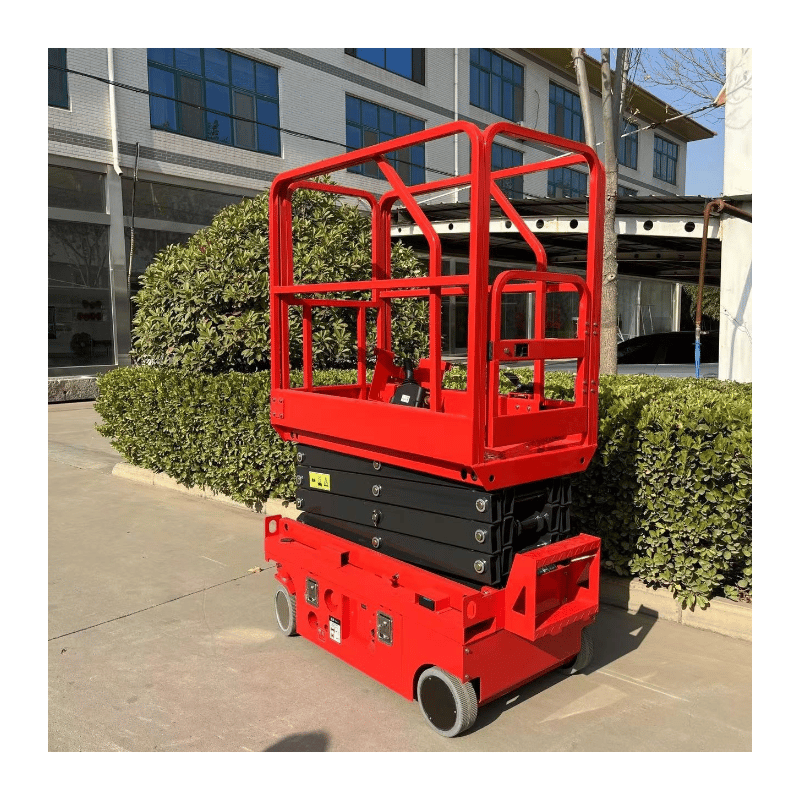

Mobile scissor aerial work platform is an equipment used in aerial work for maintenance. widely used in construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline for the equipments installations and maintenance.

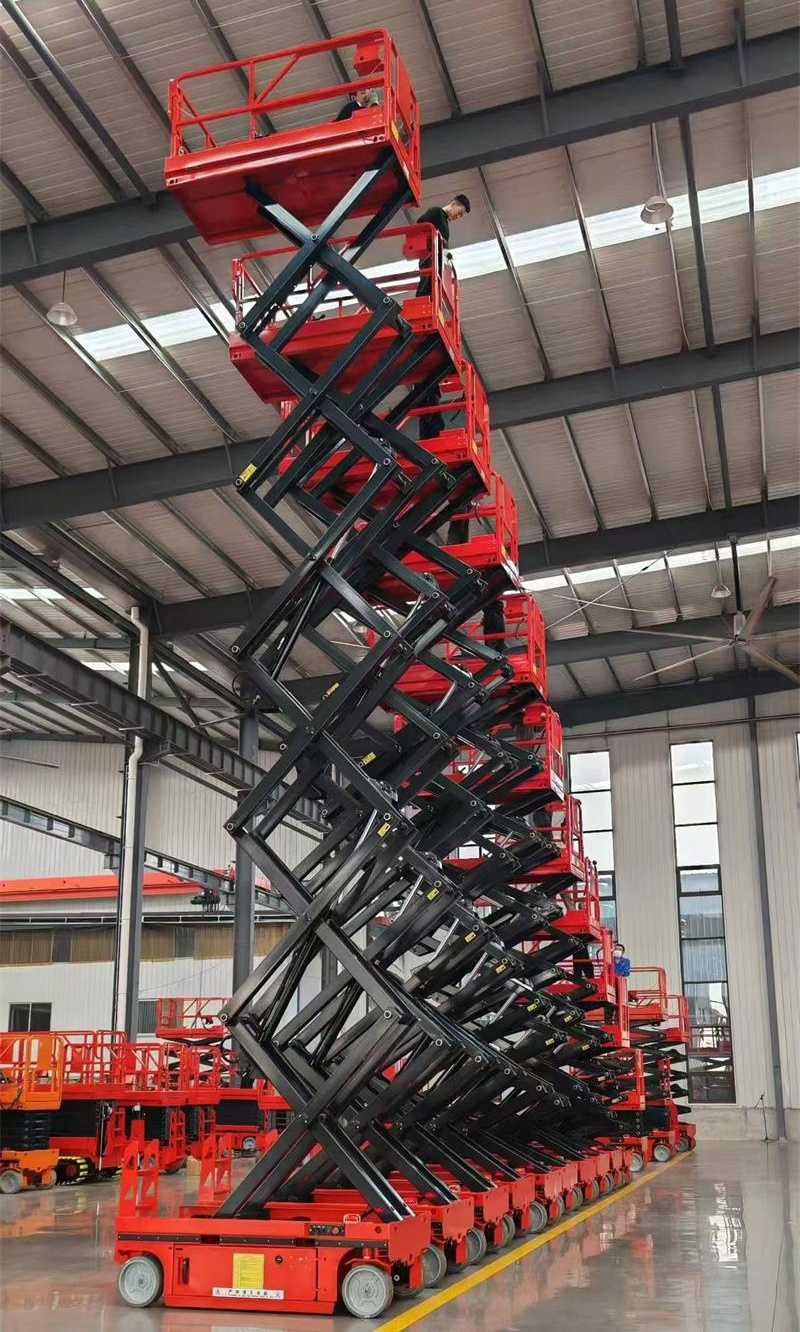

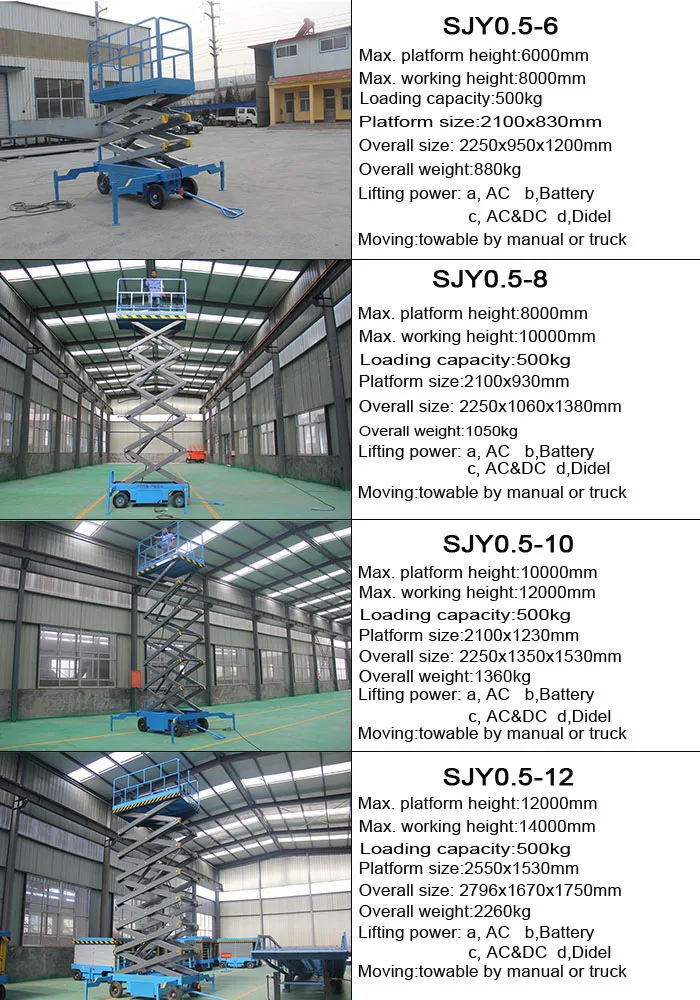

Different heights for your choice:

Equipment details:
1). Loading 500kg, 1ton, 1.5ton, 2ton

2). Lifting height from 6meters to 18meters available.

3). Voltage: 220V or 380v for your choice.

4).Table can be designed extension type.

5).There are AC power, DC power, AC/DC power, battery power, diesel power for your choise.

Platform Extension:600mm

Guardrail height 1200mm, it can be folded when packaging.

Useing stepes:

 1. To provide good support for the four legs of platform before using.

 2. Power-on, operating the elevator button above the electric control box to make the platform up and down

3. Operating the up button to raise the lift platform. (the motor rotation is reversed when the  platform is not raised, just swap the connection sequence of power cable, the motor can forward.)

4. It has a remote control button above the platform, standing on the platform also can make it up and down.

5.The platform is equipped with an emergency lowering valve, which is used for the emergency lowering operation with power failure. The platform can down slowly when loose the drop handle by hand counterclockwise. The platform will stopped declining after tighten clockwise the drop handle.

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the people above platform.

3) The limit switch system helps the lift table to stop at accurate position.

 4)All the trailing scissor lift are passed 1.2 times loading test before delivery.

Packaging & Shipping
